Motor Vehicle Remote Emission Monitoring and Management System

System Overview

The vehicle on-board remote diagnosis terminal collects vehicle engine ECU data, body central controller CAN bus data, exhaust emission data, fault information and other data by connecting to the vehicle OBD interface, and uses GPS to locate the vehicle. The collected data is uploaded to the monitoring cloud platform through the wireless transmission module to realize all-round online monitoring of the running status of the motor vehicle. Provide data services for automakers, while meeting the government's vehicle monitoring requirements.

System Architecture

System Function

Vehicle Online Monitoring

24-hour comprehensive monitoring of diesel vehicle emission data, emission time, emission location, emission intensity, driving trajectory and other data changes.

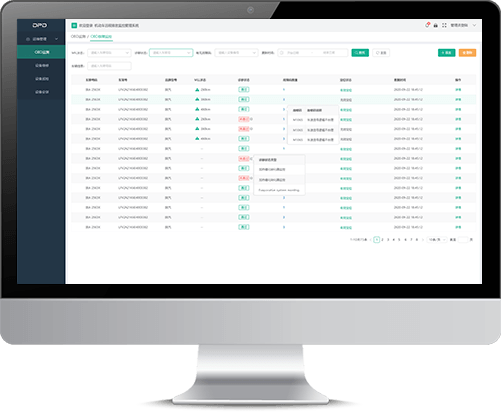

Vehicle Online Monitoring

Screening of Problem Vehicles

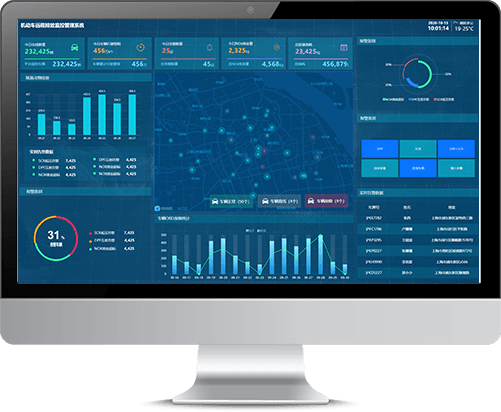

Visual Analysis

Vehicle Environmental Protection Files

Emission Heat Map

Analysis and Forecast

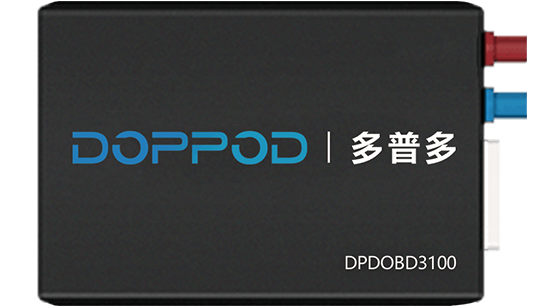

Product Function

Self-isolation Protection

With automatic isolation function of power supply and communication, to ensure that the normal and safe operation of the vehicle will not be affected.

Low Power Design

Possess low-power sleep function, supports timing wake-up, vibration wake-up, communication wake-up and other functions.

High Safety Design

Support data encryption and data signature to ensure data security while preventing data from being tampered.

Remote Upgrade

The OEM distributes the update package of vehicle control system remotely, and the vehicle can be upgraded remotely at any time.

Super Protocol Compatibility

Support the standard protocols of mainstream engine manufacturers and post-processing manufacturers, and perform automatic matching.

Anti-dismantling Design

Judge whether the device has been dismantled through the external power supply voltage and GPS signal, and send an alarm message to the platform.

Application Scenarios

Passenger Car Monitoring

New Energy Vehicle Monitoring

Non-road Mobile Machinery Monitoring

Heavy Diesel Vehicle Monitoring

Product Certification

· System EMC experiment certificate

· GB/T 32960.2-2016 functional requirements, performance requirements test report

· Secure chip certification (security level EAL4+)

· GB/T 32960.2-2016 Electromagnetic Compatibility Test Report

· Telecommunications equipment network access permit

· GB/T 2423.18-2012 salt spray protection performance test report (severity level 5)
